Automotive Steering System CNC Automation Case Study
A specialized CNC machine tool solution designed for one-time clamping and full-process machining of automotive steering gears, enabling stable accuracy and high-efficiency mass production.

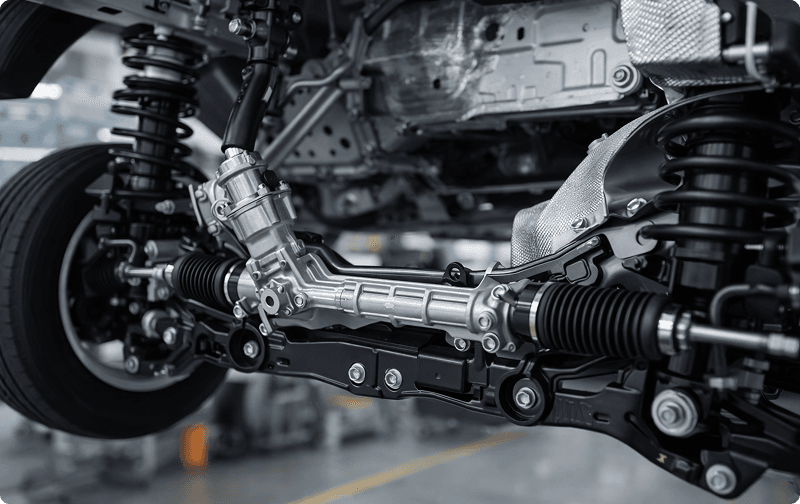

Customer Background
The customer is a Tier-1 automotive parts manufacturer specializing in steering system components for both passenger and commercial vehicles. With increasing demand for high precision, stability, and large-scale production, the customer faced growing pressure to improve machining efficiency while maintaining strict quality standards.
As a core component of automotive steering systems, the steering gear directly affects vehicle safety, handling performance, and driving experience. Any instability in machining quality can lead to performance deviation and potential safety risks, making consistent and reliable production essential.
Component & Machining Challenges
Before working with us, the customer relied on a traditional machining setup where multiple processes were distributed across different general-purpose machines. This fragmented approach led to frequent part transfers, repeated setups, and increasing dependency on manual operations — resulting in significant production inefficiencies and unstable machining quality. As production volume increased, these issues became more critical, creating bottlenecks that limited output, reduced consistency, and made it difficult to maintain high-precision standards.
Dispersed Machining Processes
Machining operations were spread across multiple machines, leading to complex workflows, increased handling time, and higher coordination costs.
Repeated Clamping Affecting Accuracy
Frequent repositioning introduced cumulative errors, making it difficult to maintain consistent precision across critical features.
Long Production Cycles
Multiple setups and machine switching significantly extended cycle times, limiting production capacity and delaying delivery.
High Dependence on Operator Skill
Manual positioning and adjustments increased variability, making product quality heavily reliant on operator experience.
Inconsistent Batch Quality
Variations in setup and process control resulted in noticeable differences between production batches, affecting product reliability.

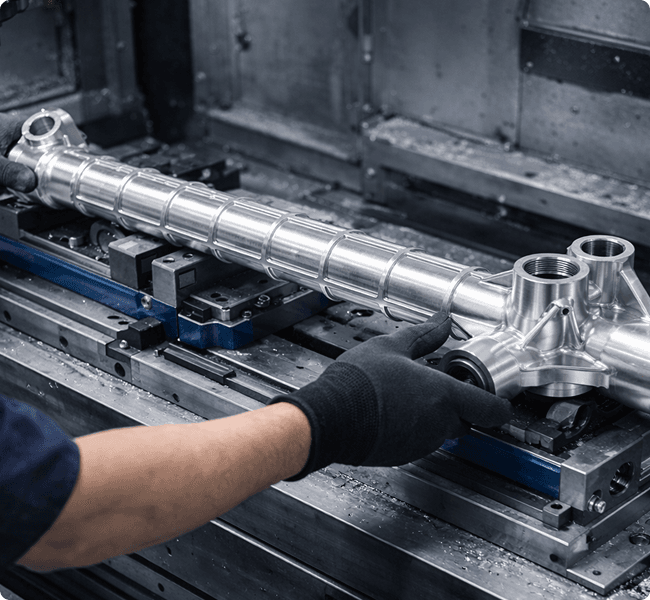

Production Challenges
Traditional machining of steering gears relied on multiple general-purpose machines and dispersed processes, leading to low efficiency, unstable accuracy, and difficulty meeting large-scale production requirements.
1Complex Machining Processes
Multiple operations such as drilling, tapping, and milling increase machining complexity.
2High Precision Requirements
Strict dimensional accuracy is required to ensure steering system reliability.
3Repeated Clamping
Multiple setups may cause positioning errors and affect consistency.
4Low Efficiency in Mass Production
Variations in setup and positioning led to noticeable quality differences between production batches.
These challenges made it difficult to achieve stable, high-efficiency, and scalable production, creating an urgent need for an integrated CNC production line solution.
Customized CNC Solution for Steering Gear Production
To address the customer’s fragmented machining processes, repeated clamping errors, and strict precision requirements, we developed a dedicated CNC machining solution tailored for steering system components.
One-Time Clamping for Full-Process Machining
All critical operations are completed in a single setup, eliminating cumulative errors caused by repeated repositioning and ensuring consistent dimensional accuracy.
Integrated Multi-Process Machining
Drilling, tapping, and milling are completed on one machine, reducing part transfers and simplifying the production workflow.
High-Rigidity Turret Structure
The optimized vertical turret design ensures stable cutting performance and minimizes vibration, improving machining accuracy and surface quality.
Equipment-Level Precision Control
Precision is built into the machine structure and fixturing system, reducing dependency on operator skill and ensuring stable batch consistency.
High-Efficiency Production Capability
Optimized process flow and reduced setup time significantly shorten cycle time and increase production capacity.
This solution enables stable, high-precision, and scalable manufacturing for automotive steering components.
Real Performance Gains in Mass Production
After implementation, the customer successfully transformed from a fragmented machining setup to a stable, high-efficiency production system, achieving significant improvements in output, precision, and consistency.
The successful implementation of this specialized steering gear machine tool enabled the customer to upgrade from a traditional dispersed machining mode to a high-efficiency, specialized, and stable production system.
- Expand production capacity with stable output
- Achieve consistent precision across batches
- Reduce reliance on skilled operators
- Strengthen competitiveness in automotive supply chains
Automotive Steering Gear CNC Automation – Implementation & Results
After implementation, the customized CNC solution was successfully integrated into the customer’s production line, delivering significant improvements in efficiency, machining accuracy, and batch consistency.
99.9%
Machining Process Stability
95%
Quality Improvement
These improvements enabled faster production cycles, reduced defect rates, and more stable large-scale manufacturing.
